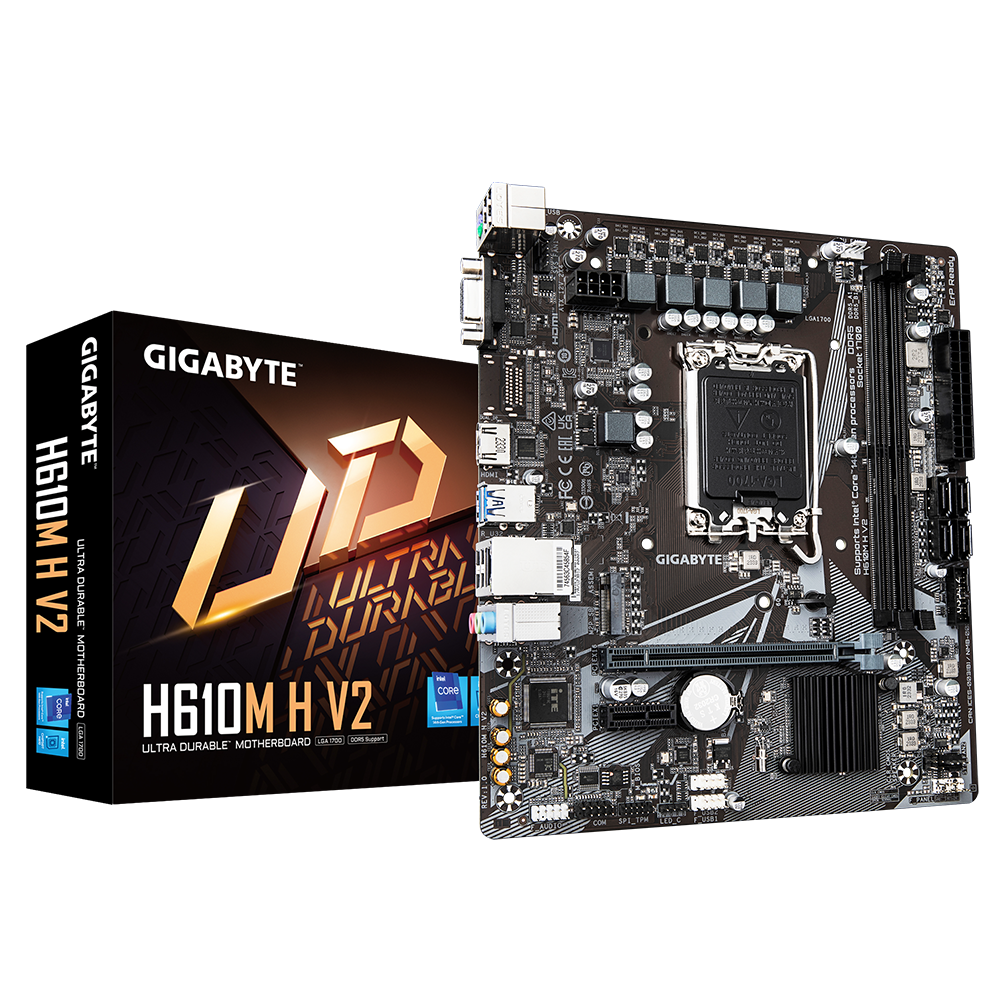

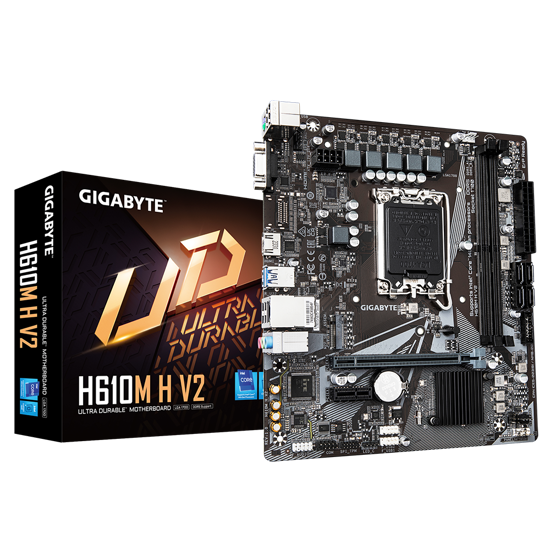

PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
FORMAT: Micro ATX Form Factor 22.3cm x 19.6cm
VEZNI ČIP: Intel H610
POMNILNIK:
2 x DDR5 DIMM (do 5600/5200/4800/4400MHz) do skupno 64GB kapacitete, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
GRAFIKA: DA - preko CPU
RAID: NE
RAZŠIRITVENE REŽE:
1 x PCI Express x16
1 x PCI Express x1
MREŽNA KARTICA: Realtek LAN chip (10/100/1000 Mbit)
ZVOČNA KARTICA: Realtek audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/H610M-H-V2-rev-10#kf
